Double cladding 2D fiber arrays Circle ring type PM Fiber

Place of Origin CHINA
Markenname YOGEL
Zertifizierung ISO9000
Minimum Order Quantity 1
Preis negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Substrate Material Quartz,BF33 and others Wavelength Range 1310 nm, 1550 nm, 850 nm, 1300 nm, 1625 nm
Number Of Channels Up to 128CH,or customized Connector Polishing PC, UPC, APC
Type Bundles & Arrays Polarization Extinction Ratio ≥20 dB
Operating Temperature -40°C to +85°C Connector Type FC, SC, LC, ST, MTP/MPO, SMA, D4, DIN, E2000
Connector Material Ceramic, Metal Fiber Mode Single Mode and Multimode
Number Of Fibers 2, 4, 8, 16, 32, 64, 128 Fiber Spacing 250 μm, 500 μm, 1 mm, 2 mm, 3 mm
Fiber Type Single Mode, Multimode, Polarization Maintaining Single Fiber Attenuation ≦1 dB/m
Hinterlass eine Nachricht
Produkt-Beschreibung

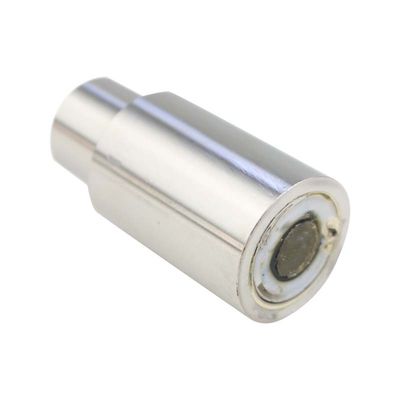

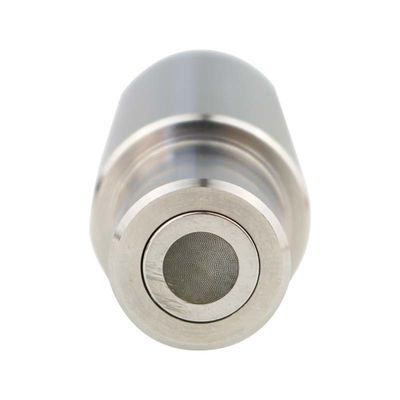

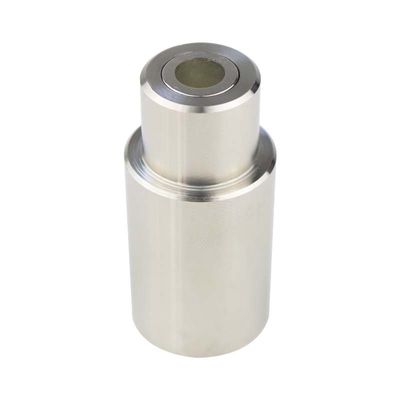

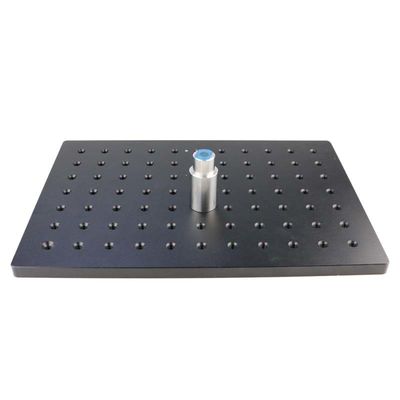

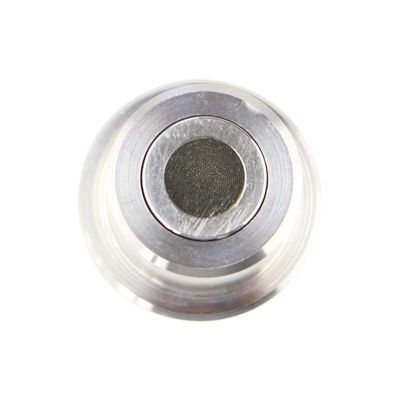

Double cladding 2D fiber arrays Circle ring type PM Fiber


Due to the use of high-end chip manufacturing technology, our company's fiber array products are not limited by the thickness and arrangement shape of the fiber. The thinnest fiber can reach 25um. The arrangement shape can be the traditional straight line; it can also be square, circular; it can even be parabolic, M-shaped, and random. The products cover one-dimensional linear arrays, two-dimensional surface arrays, and three-dimensional spherical fiber arrays.


The products can be used under harsh conditions such as high pressure, high vacuum, high temperature, and ultra-low temperature. They have good environmental adaptability and are widely used in communications, measurement, imaging, printing, welding and other fields.



Feature:

  • Fiber type (specify size, material): 40/48/55, quartz
  • NA:0.22
  • Single fiber attenuation:≦1 dB/m
  • Number of fibers:271
  • Device length: 3m (split beam length 0.5m)
  • Arrangement: Hexagonal Dense Pile Array
  • Duty Cycle:52%
  • Split strategy:1:7
  • Closed End Connector: Standard SMA905
  • Split-end connector.:Standard SMA905
  • Closed end face size: hexagonal with side length 0.459mm
  • Split bundle end face dimensions: 6 pcs φ0.385; 1pcs φ0.05
  • Channel Yield:≥99%
  • Yield rate of channels within 4 circles of the center: 100%

     Application:

     *Silicon photonics field

     *PIC coupling application

     *Grating coupling applications

     *High-efficiency coupling of small mode spot laser chips

     *Non-dimmable high-efficiency coupling

     *Resistant to reflow soldering applications

     *High power applications





Items Specs
Substrate Material Quartz,BF33 and others
Fiber Spacing(um) 127 or 250 or customized
Fiber Core Position Tolerance(um) ≤1.0,or customized
Polishing Angle(°) 0°~45°,or customized
Fiber Type SM,PM
Number of Channels Up to 128CH,or customized
Operating temperature() -5~70

Double cladding 2D fiber arrays Circle ring type PM Fiber 0

Double cladding 2D fiber arrays Circle ring type PM Fiber 1Double cladding 2D fiber arrays Circle ring type PM Fiber 2
